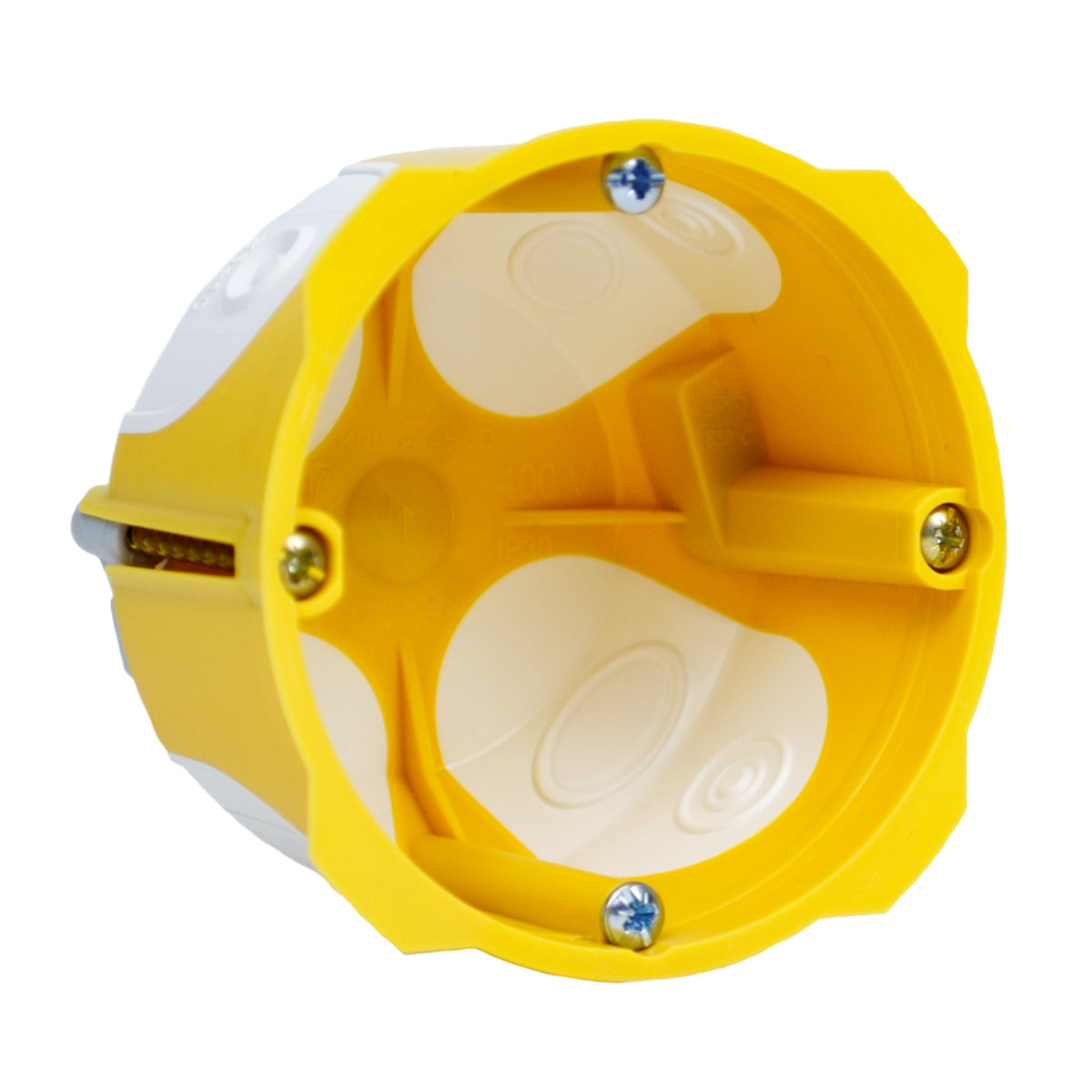

illustrative picture
To download 3D models, please login or create an account and request access.
KPL6445LD_EN
| EAN kood | 8595568930835 |
| Tollikood | 39259080 |
| Kaal | 0,03 kg/pcs |
| Materjal | PVC |
| Juhtiv materjal | jah |
| Soundproofing | jah |
| Isekustuv | 30 s |
| Nimipinge | <= 400 V |
| Nimivool | <= 16 A |
| Temperatuurikindlus | -5 - 60 °C |
| Põlemistest | 850 °C |
| Laius | 70 mm |
| Kõrgus | 68 mm |
| Sügavus | 45 mm |
| Puuritud augu läbimõõt | 68 mm |
| Tootmissoovitused Kõigi toodete puhul, mis on paigaldatavad õõnesseina, soovitame kasutada meie tarnitud freesimisseadmeid. | |
| Alusmaterjali tulekaitseklass | A1 - F |
| Kaitsetüübid | IP 30 |
| Standardid | ČSN EN 60 670-1 |
| Pakendi kirjeldus harukarbid, mis on varustatud kipsplaadi paigaldamise kruvidega ja seadmekruvidige, harukarbid on lahtiselt kartongkastis | |
Inlet openings made of flexible material. The cable or tube installation is performed by extracting the pre-pressed inlet to the flexible membranes and then inserting the required item into the opening. Installation box in the hole is made by tightening mounting screws. Air proofed even with inserted cable or pipe. Suitable for low energy and passive houses. The fixing screws as well as the instrument screws are double-threaded for quick installation; the box has plastic flanges. When mounting, it is not necessary to countersink the plasterboard edge. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. Protected by a European industrial design trademark.
