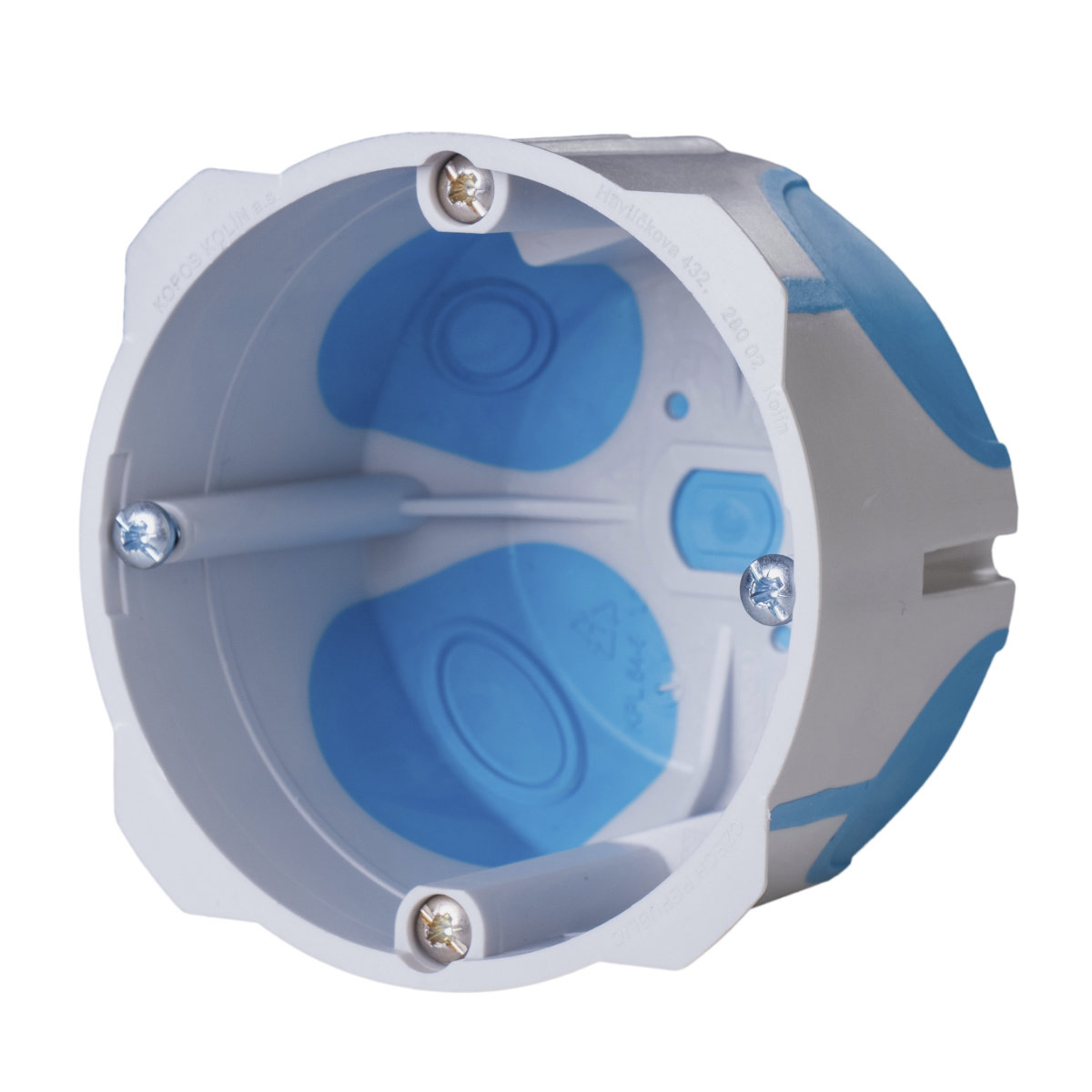

illustrative picture
To download 3D models, please login or create an account and request access.
EAN kood8595568937643
Tollikood39259080
Kaal0,02 kg/pcs
MaterjalPP
Halogeenivaba materjaljah
Juhtiv materjaljah
Soundproofingjah
Isekustuv30 s
Nimipinge<= 400 V
Nimivool<= 16 A
Temperatuurikindlus-5 - 60 °C
Põlemistest850 °C

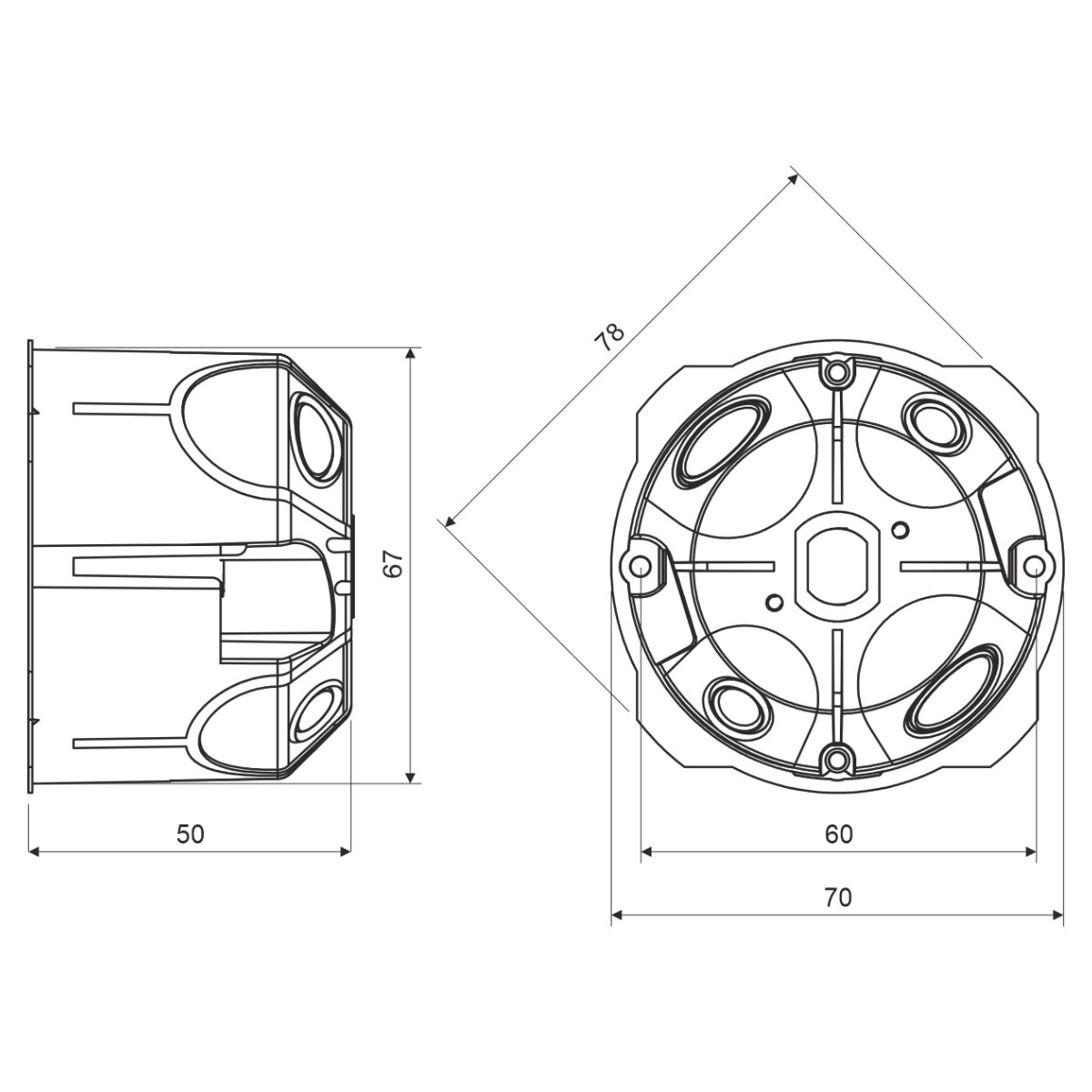

Laius70 mm
Kõrgus68 mm
Sügavus50 mm
Puuritud augu läbimõõt68 mm
Tootmissoovitused
Kõigi toodete puhul, mis on paigaldatavad õõnesseina, soovitame kasutada meie tarnitud freesimisseadmeid
Tulekahju reaktsiooniklassA1 - F
KaitsetüübidIP30
StandardidČSN EN 60 670-1
Pakendi kirjeldus
harukarp on varustatud kruvidega kinnitamiseks kipsplaadile ja seadmekruvidega, pakendatud lahtiselt kartongkasti

Halogen-free design of the double-injection box for use in hollow wall environments with increased need for protection of persons and property. Inlet openings made of flexible material. Cable installation is accomplished by tearing out the pre-moulded inlet on the flexible membranes and inserting the cable or conduit into the opening. Installation of the box in the opening is done by tightening the mounting screws. The airtightness of the penetration is ensured even when the cable or tube is inserted. Suitable for low-energy or passive houses. The box meets the requirements for installation in soundproof walls with an attenuation of up to 69 dB. Mounting and instrument screws are double-tapped threaded for quick installation, box includes plastic feet. No need to countersink the edge of the plasterboard during installation. IP30 protection is met by a box fitted with a suitable lid or instrument with a protection rating greater than or equal to IP30.
