EAN kood8595568938664
Tollikood39259080
Kaal0,0437 kg/pcs
Värvoranž + hall
MaterjalPP
Halogeenivaba materjaljah
Juhtiv materjaljah
Nimipinge500 V
Temperatuurikindlus-25 - 60 °C
Lühiajaline temperatuuritaluvus90 °C
Põlemistest650 °C

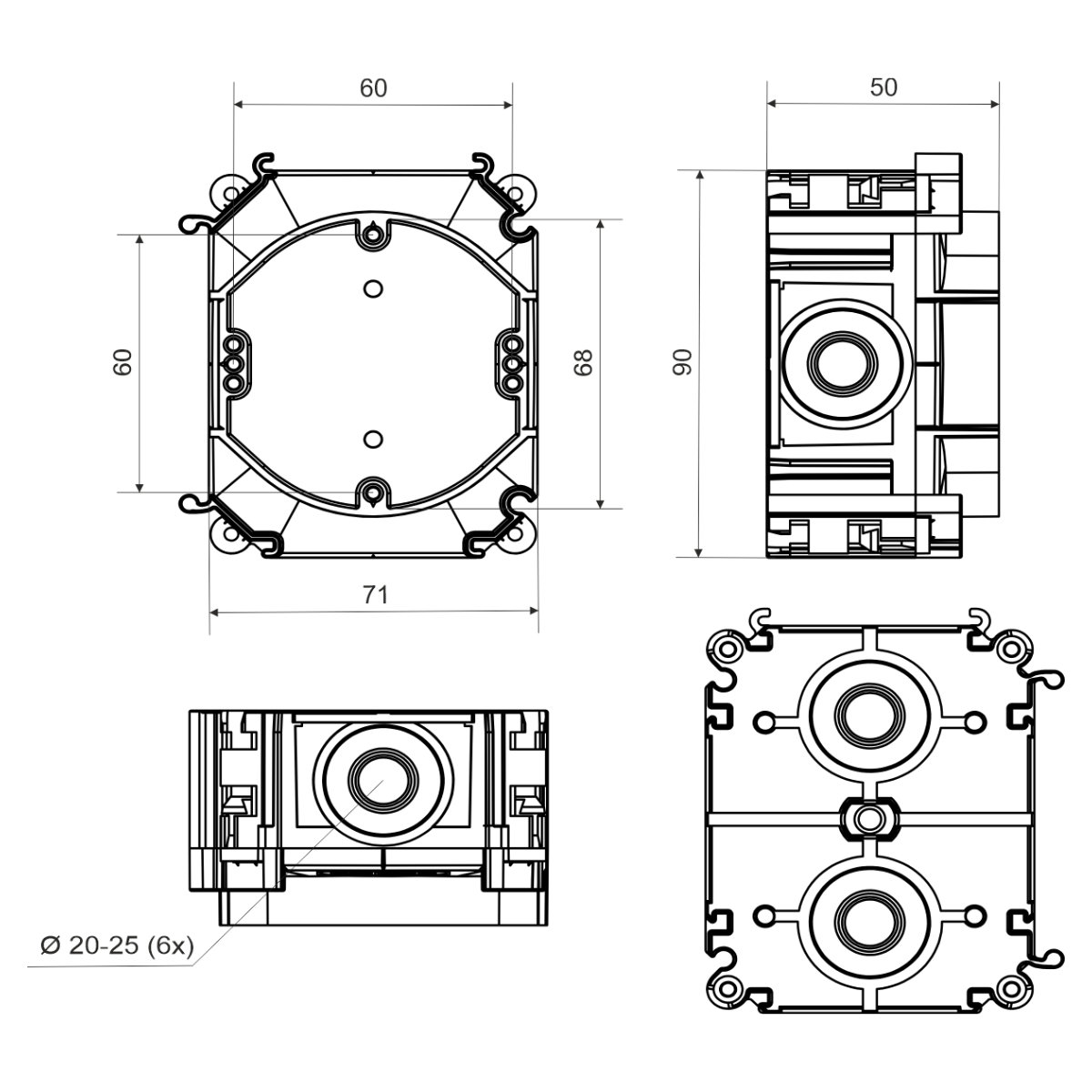

Keskmine68 mm
Laius71 mm
Kõrgus90 mm
Sügavus50 mm
Alusmaterjali tulekaitseklassA1
Vahekaugus,kui ühendada 2 harukarpi71/90 mm
Pakendi kirjeldusbox with shrink wrap lid

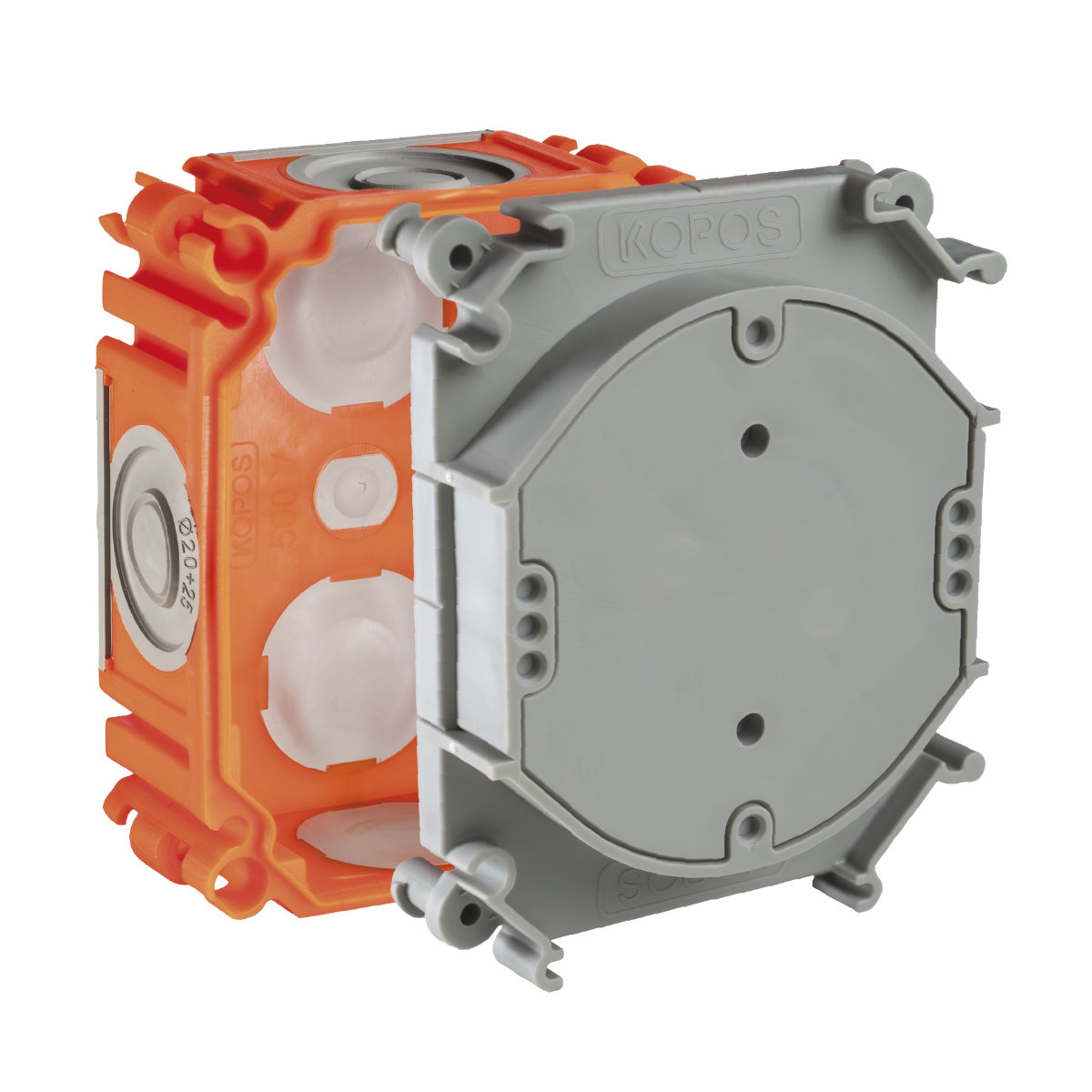

Instrument box for cast concrete - installation depth 50 mm. The lid of the box is adapted for nailing or screwing with screws to wooden formwork. The possibility to fix the lid of the box using glue from a hot melt gun. Sealed connection of the lid with the box. Pipe inlets fitted with a sealing membrane to prevent the concrete penetration. The possibility of fixed connection of boxes with a pitch of 71 mm and 90 mm. The possibility of fixing the box to the reinforcement (metal armature) ) using SB-MK 1 mounting wings (not included in the delivery). The possibility of using a box for double-sided assembly - mutual fixation using steel rods 6 mm KBP-8 (not included in the package).
