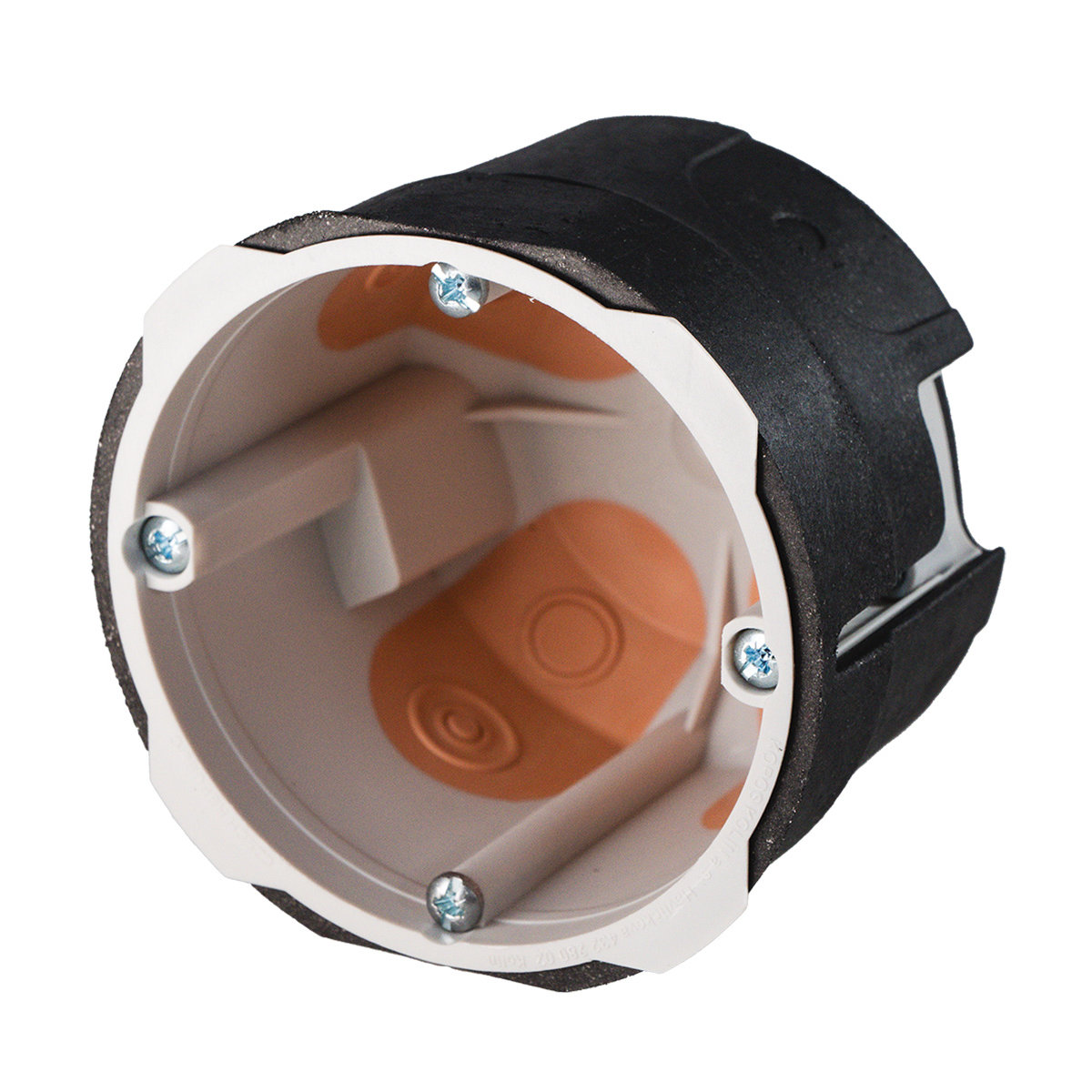

illustrative picture
To download 3D models, please login or create an account and request access.
EAN kood8595568937612
Tollikood39259080
Kaal0,06 kg/pcs
Värvmust + hall + oranž
MaterjalPP
Halogeenivaba materjaljah
Juhtiv materjaljah
Soundproofingjah
Isekustuv30 s
Nimipinge<= 400 V
Nimivool<= 16 A
Temperatuurikindlus-5 - 60 °C
Põlemistest850 °C
Assamblee
horizontally and vertically, a maximum of 3 boxes side by side, possibility of mounting the boxes against each other

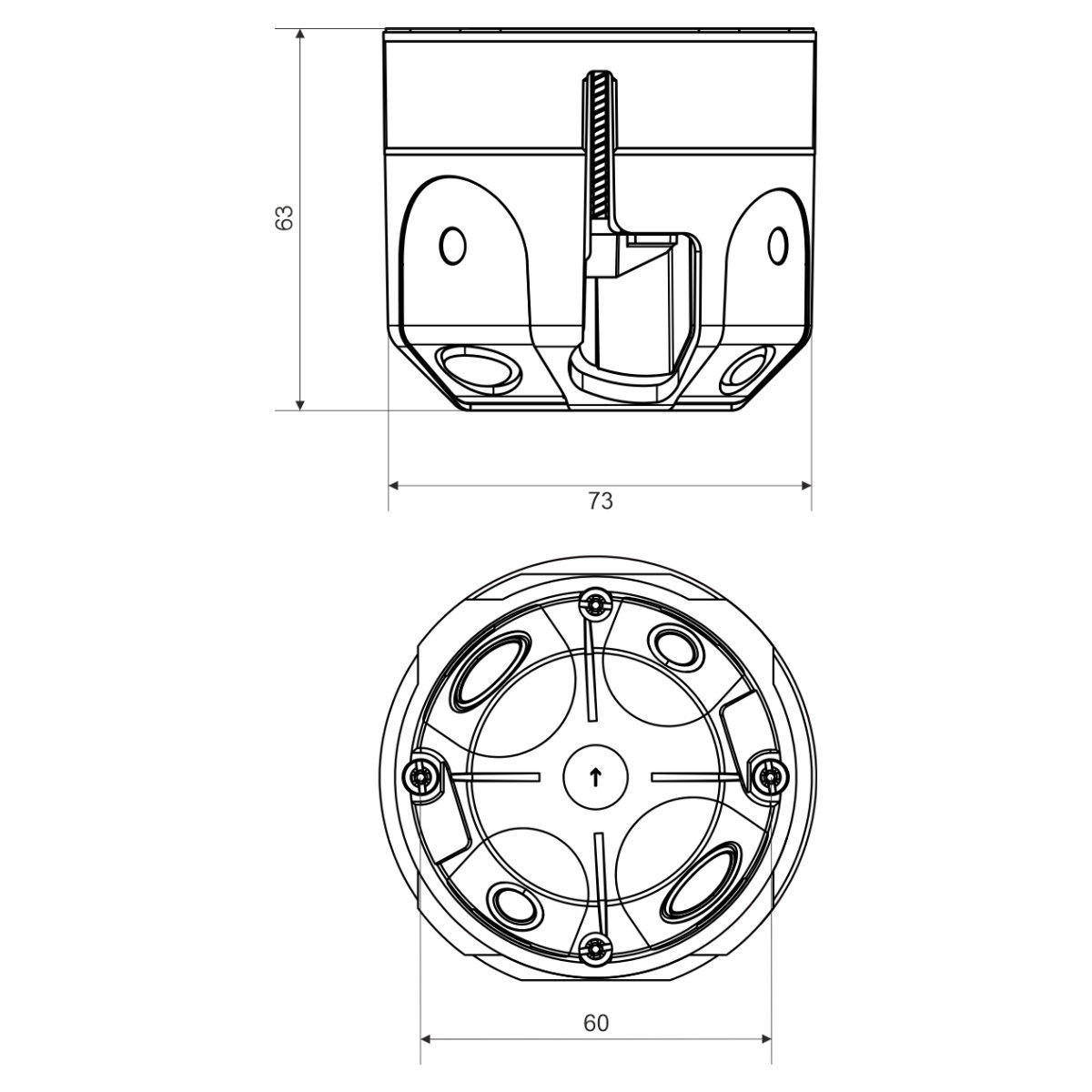

Laius73 mm
Kõrgus60 mm
Sügavus63 mm
Puuritud augu läbimõõt73 mm
Tootmissoovitused
Kõigi toodete puhul, mis on paigaldatavd õõnesseina, soovitame kasutada meie tarnitud freesimisseadmeid.
Tulekahju reaktsiooniklassA1 - F
Võimalus ühendada 2 harukarpi järjestikkujah
KaitsetüübidIP 30
Standardid
ČSN EN 60 670-1, ČSN EN 1363-1:2013, ČSN 73 08 10
Tulekindluse standardidEI 15 - EI 90
Pakendi kirjeldus
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box

In case of fire, it provides integrity and insulation for up to 90 minutes (EI 15 - EI 90). The entry openings are made of flexible material. The fire-resistant material is located outside the box. The drill bit diameter for installation is 73 mm. The box is soundproof (soundproofing up to 69 dB). Mounting screws are equipped with a double-threaded design with plastic pads for quick installation. The box is designed for facilities with increased need for personal and property protection.
