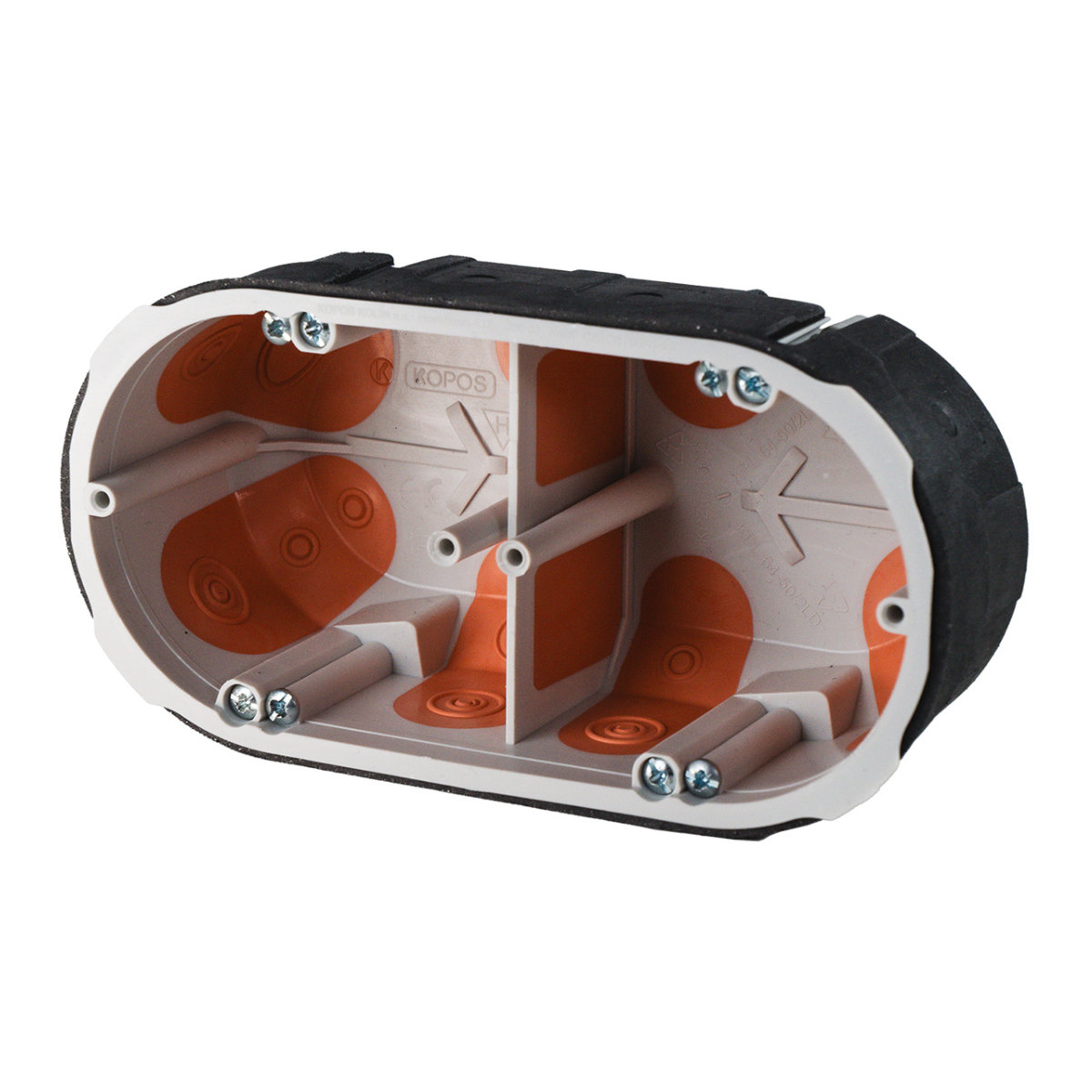

illustrative picture
To download 3D models, please login or create an account and request access.
EAN kood8595568937629
Tollikood39259080
Kaal0,10 kg/pcs
Värvmust + hall + oranž
MaterjalPP
Halogeenivaba materjaljah
Juhtiv materjaljah
Soundproofingjah
Isekustuv30 s
Nimipinge<= 400 V
Nimivool<= 16 A
Temperatuurikindlus-5 - 60 °C
Põlemistest850 °C
Assambleehorizontal and vertical mounting

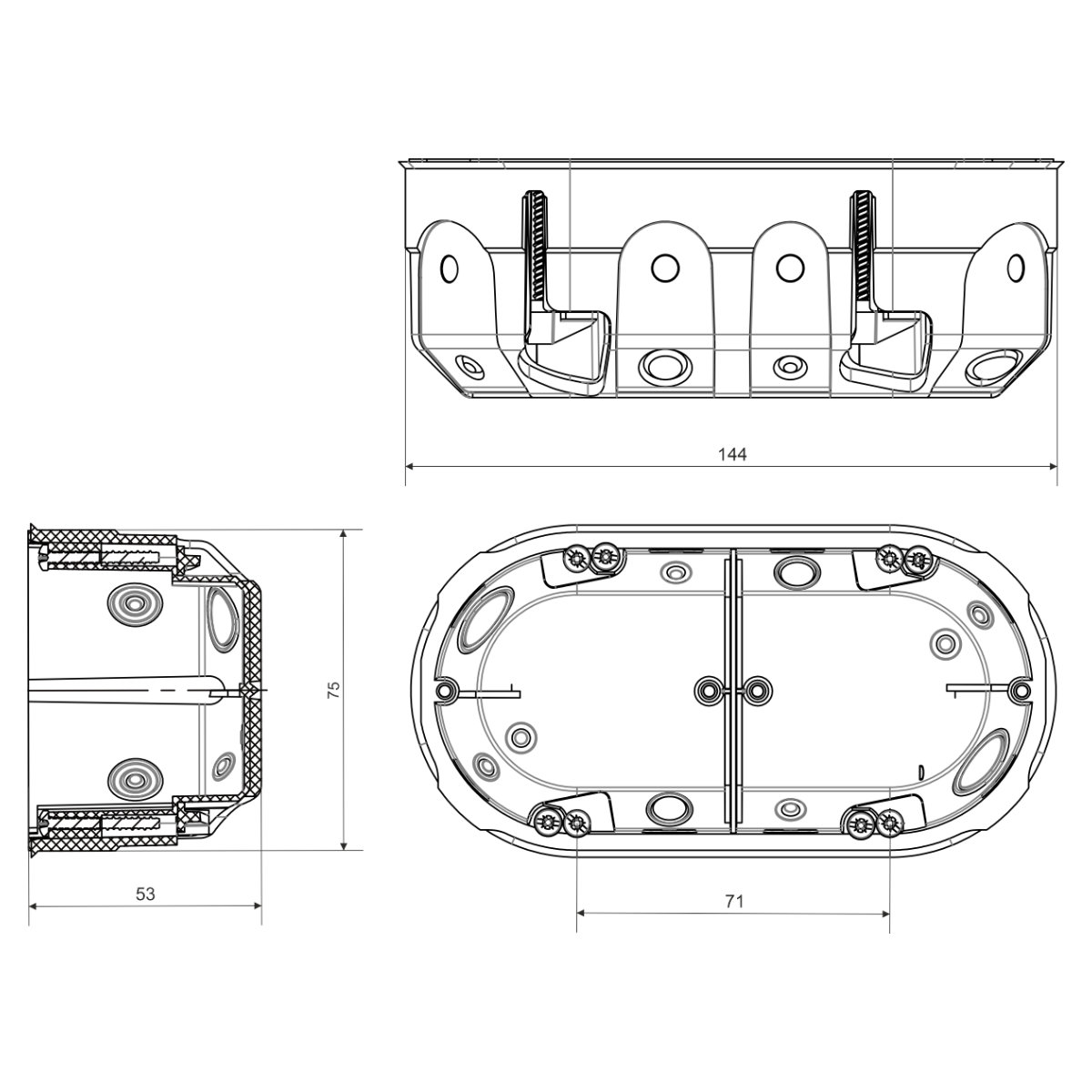

Laius144 mm
Kõrgus75 mm
Sügavus53 mm
Puuritud augu läbimõõt73 mm
Tootmissoovitused
Kõigi toodete puhul, mis on paigaldatavd õõnesseina, soovitame kasutada meie tarnitud freesimisseadmeid.
Tulekahju reaktsiooniklassA1 - F
KaitsetüübidIP 30
Standardid
ČSN EN 60 670-1, ČSN EN 1363-1:2013, ČSN 73 08 10
Tulekindluse standardidEI 15 - EI 90
Pakendi kirjeldus
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box

In case of fire, it provides integrity and insulation for up to 90 minutes (EI 15 - EI 90). The entry openings are made of flexible material. The fire-resistant material is located outside the box. The drill bit diameter for installation is 73 mm. The box is soundproof (soundproofing up to 69 dB). Mounting screws are equipped with a double-threaded design with plastic pads for quick installation. The box is designed for facilities with increased need for personal and property protection.
