EAN kood8595568936301
Kaal0,10 kg/pcs
Juhtiv materjaljah
Isekustuv30 s
Nimipinge<= 400 V
Nimivool<= 16 A
Temperatuurikindlus-25 - 60 °C
Põlemistest850 °C

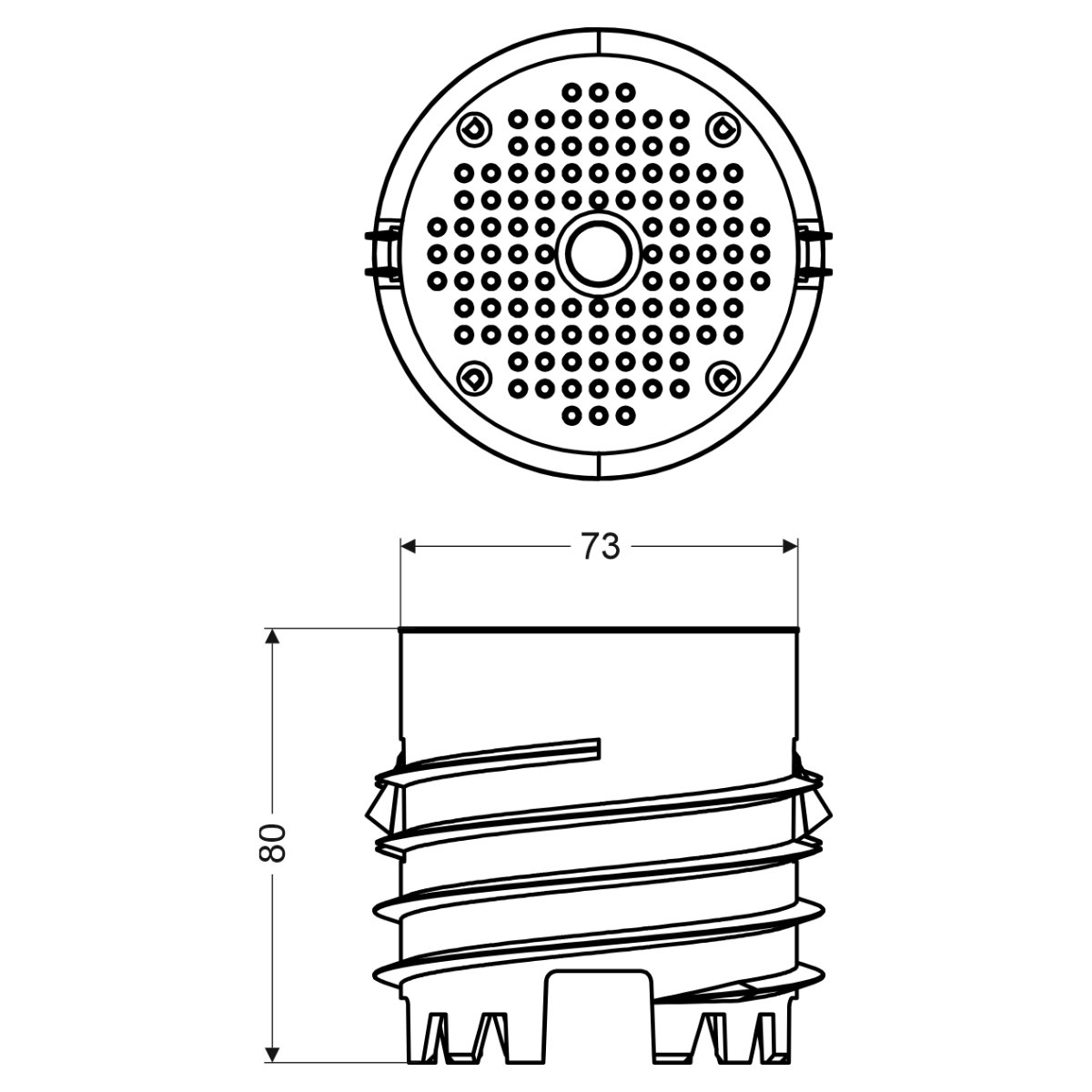

Keskmine73 mm
Sügavus80 mm
Alusmaterjali tulekaitseklassA1 - F
Pakendi kirjeldus
individuaalne paigaldusalus on pakitud eraldi kartongkasti

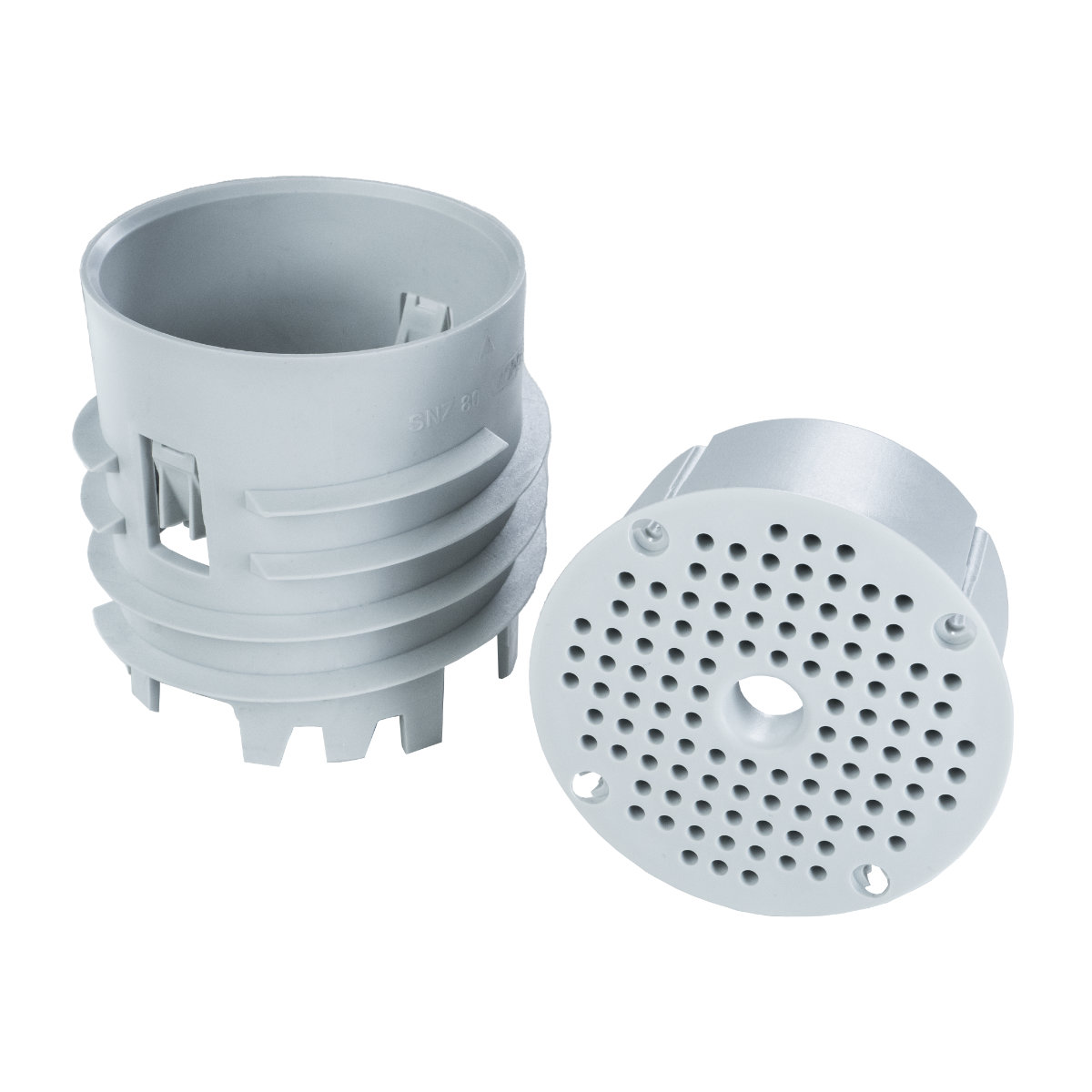

For the installation of smaller electrical devices (motion sensors, cameras, etc.) on insulated building facades with an insulation layer thickness of min. 80 mm. The mounting plate is suitable for facade polystyrenes and mineral wool. The box can also be mounted in finally made insulated facades. Maximum load 15N. The package includes a mounting plate carrier, mounting plate, assembly instructions and appropriate screws. For the first installation, it is necessary to buy the MDFZ 80/VDZ set, which also contains a manual drilling set. Robust construction.
