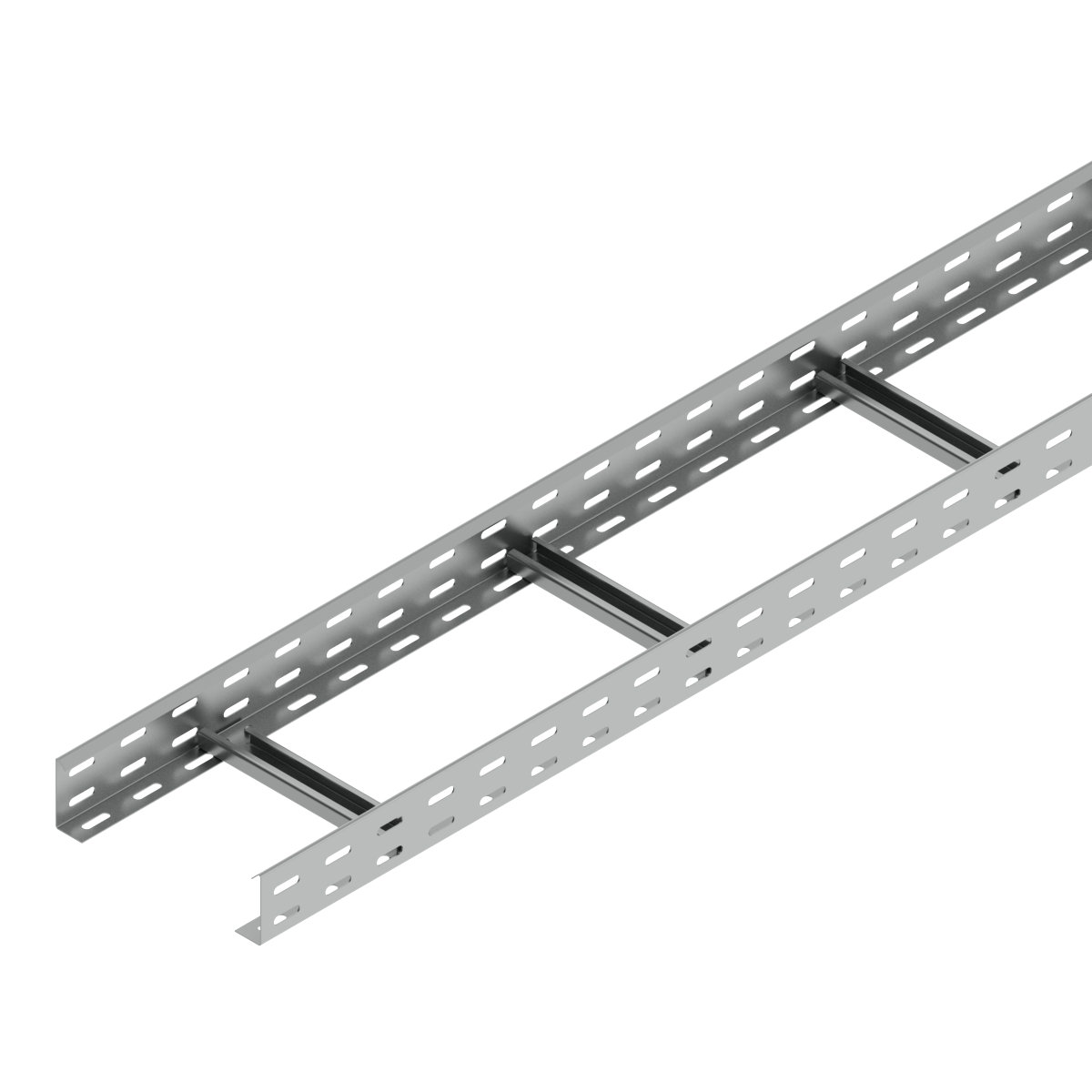

illustrative picture
INOXKL60_EN
| EAN kood | 8595057641907 |
| Tollikood | 73089059 |
| Kaal | 2,10 kg/m |
| Pinnaviimistlus | Roostevaba teras AISI 304 |
| Temperatuurikindlus | -50 - 150 °C |
| Laius | 200 mm |
| Kõrgus | 60 mm |
| Pikkus | 2100 mm |
| Standardid | ČSN EN 61537 |
| Metallplaadi paksus | 1,2 mm |
| Vaheseina kaugus | 300 mm |
The joining of the ladders is performed by using the couplings INOXS 60 and min. 4 pcs of bolts NIXSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
