EAN kood8595568932594
Tollikood85363030
Kaal0.09 kg/pcs
MaterjalPVC
Juhtiv materjaljah
Isekustuv30 s
Nimipinge<= 400 V
Nimivool<= 16 A
Temperatuurikindlus-5 - 60 °C
Põlemistest850 °C

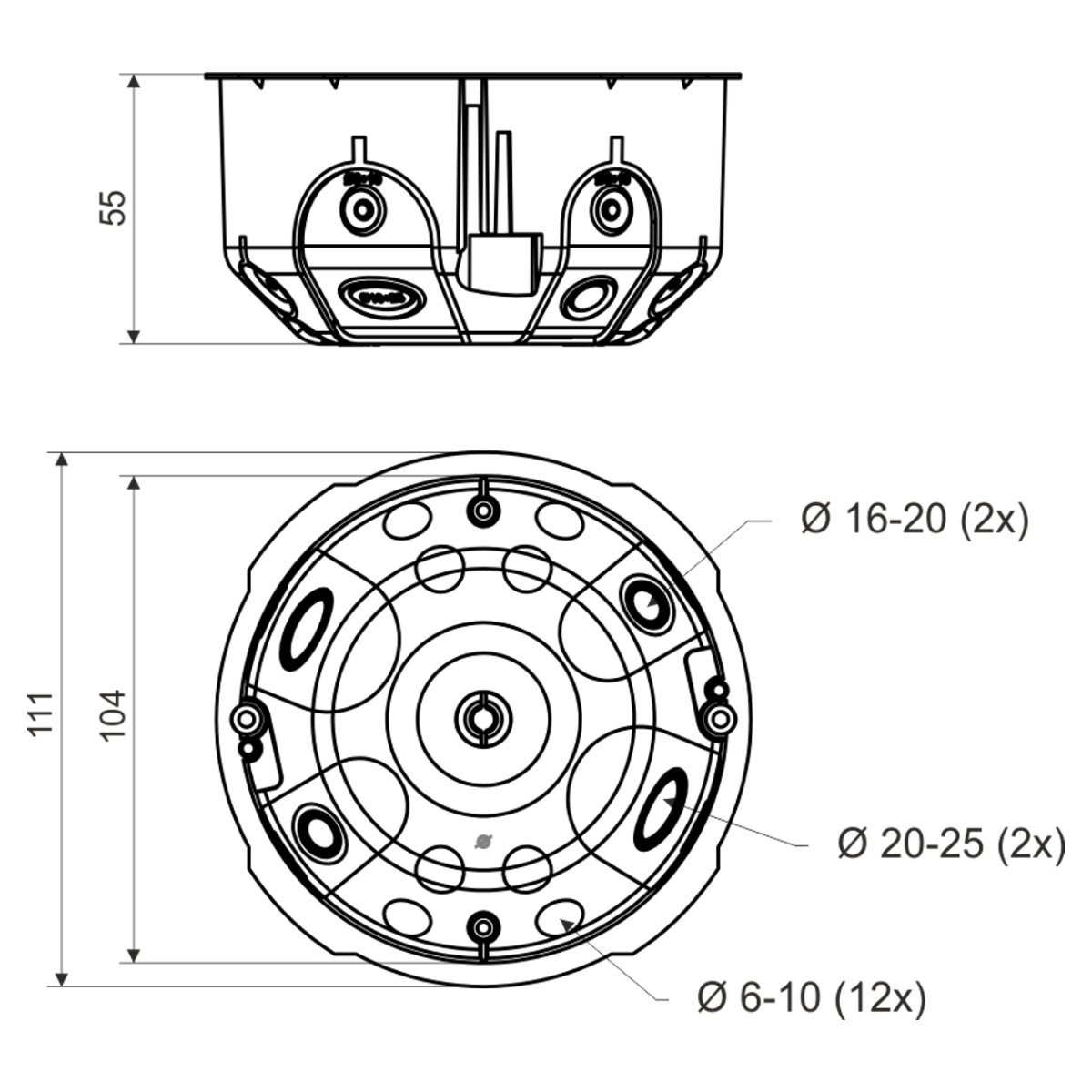

Keskmine104 mm
Sügavus55 mm
Puuritud augu läbimõõt105 mm
Tootmissoovitused
Kõigi toodete puhul, mis on paigaldatavad betoonseintesse, soovitame kasutada meie tarnitud freesimisseadmeid.
Tulekahju reaktsiooniklassA1 - F
KaitsetüübidIP30
StandardidČSN EN 60 670-1
Pakendi kirjeldus
kipsplaati paigaldatavad harukarbid on varustatud kruvidega ning kaaned on pakitud eraldi ja on asetatud kartongkasti

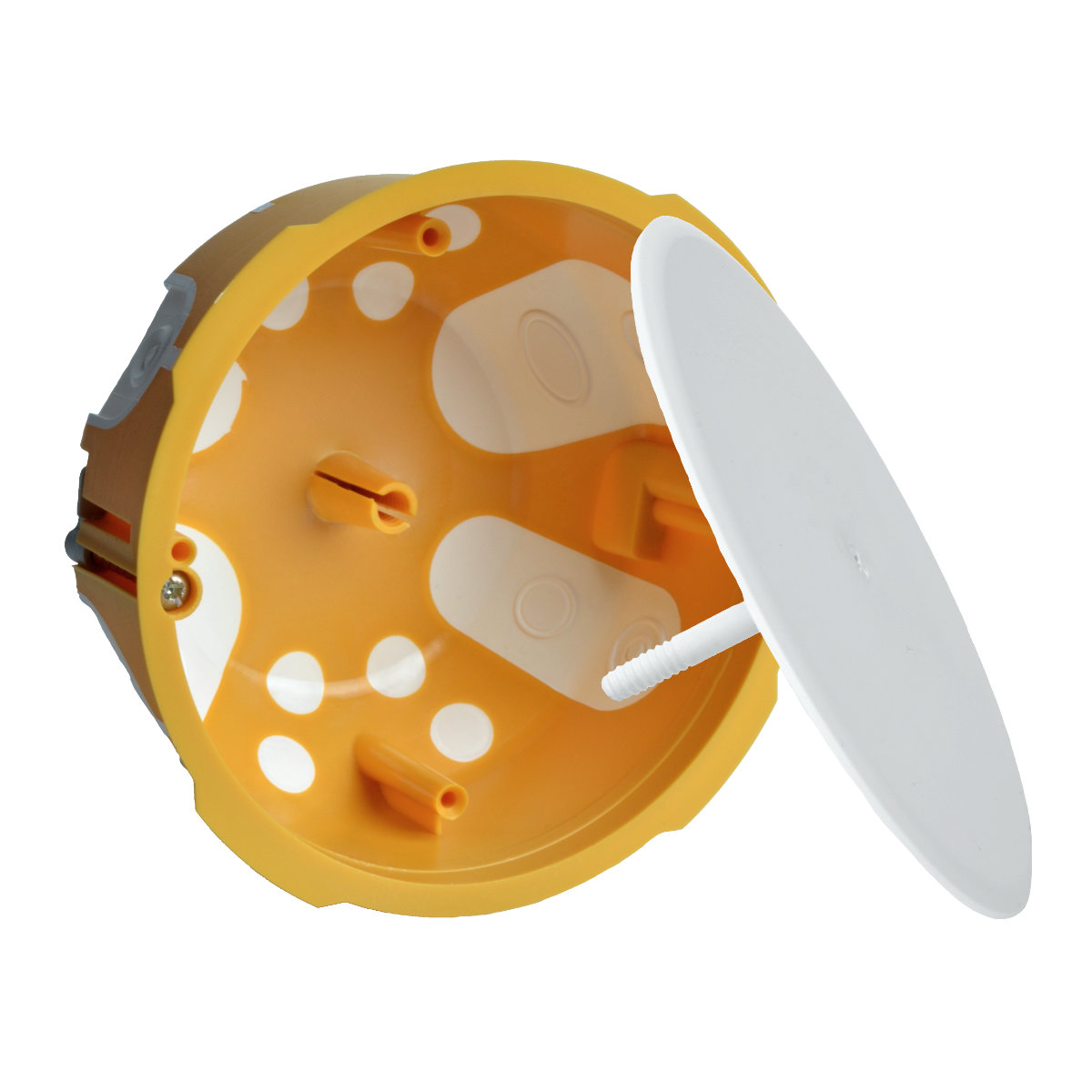

Sufficient space to create larger electrical installations. The inlet openings are made of flexible material. Installation of the cable or pipe is done by tearing out the pre-pressed inlet on the flexible membranes and inserting the cable or pipe into the resulting hole. Ensured airtightness of the passage even when the cable or pipe is inserted. Prevents airflow through installations. Suitable for low-energy or passive houses. It is not necessary to countersink the edge of the plasterboard during installation. The double thread mounting screws for quick installation provided. Protected by a European industrial design trademark.
