EAN kood8595568942234
Tollikood85369010
Kaal0,7791 kg/tk
Põlemistest650 °C
Mehhaaniline kaitseIK07
Laius126 mm
Kõrgus126 mm
Sügavus48 mm
Funktsionaalsus tulekahju ajalP90-R, E90, PS90
KaitsetüübidIP40
Tulekindluse standardidČSN 73 0895, DIN 4102-12, STN 92 0205

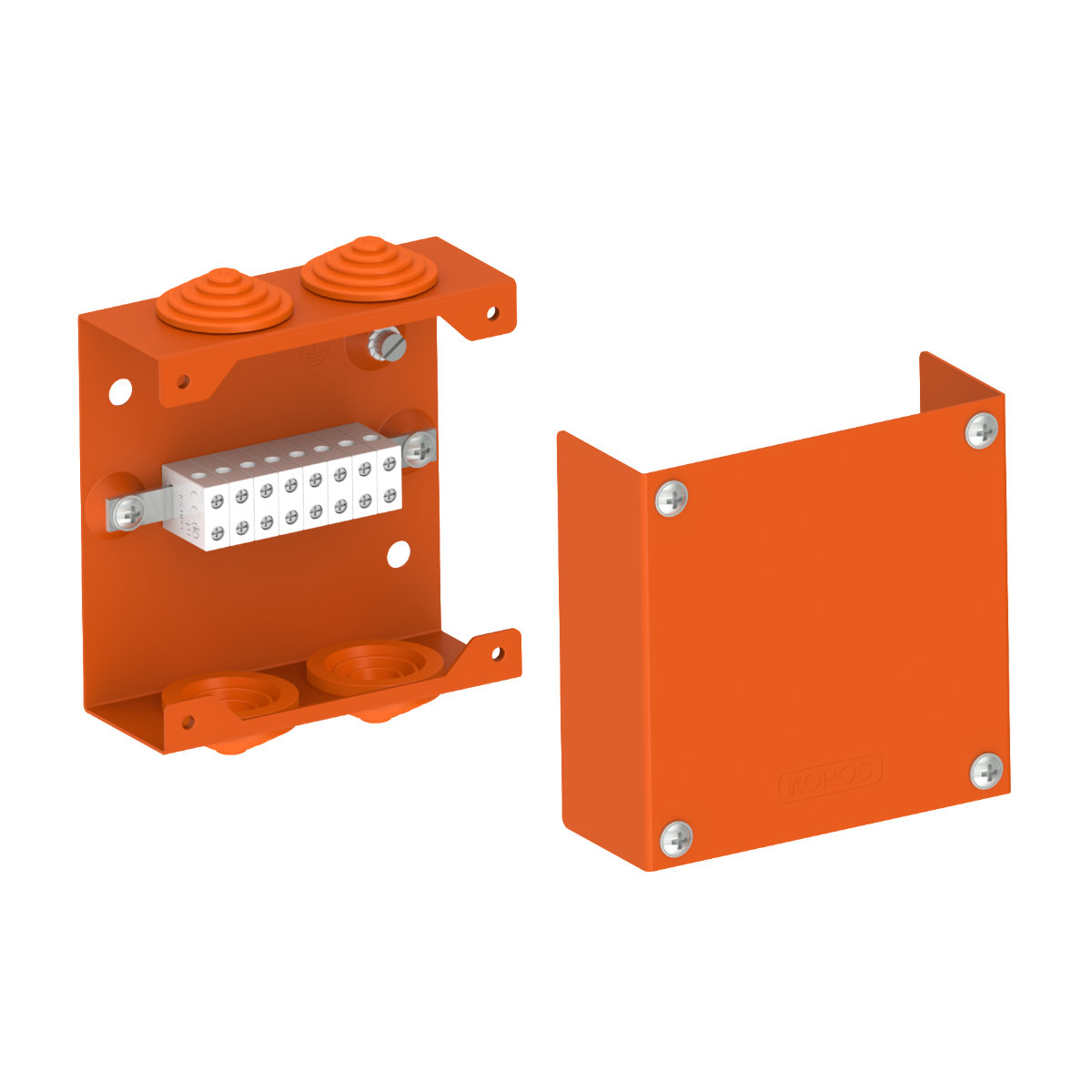

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with data cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).
