KPRL6460LDHF_EN
| EAN kood | 8595568937674 |
| Tollikood | 39259080 |
| Kaal | 0,02 kg/pcs |
| Materjal | PP |
| Halogeenivaba materjal | jah |
| Juhtiv materjal | jah |
| Soundproofing | jah |
| Isekustuv | 30 s |
| Nimipinge | <= 400 V |
| Nimivool | <= 16 A |
| Temperatuurikindlus | -5 - 60 °C |
| Põlemistest | 850 °C |

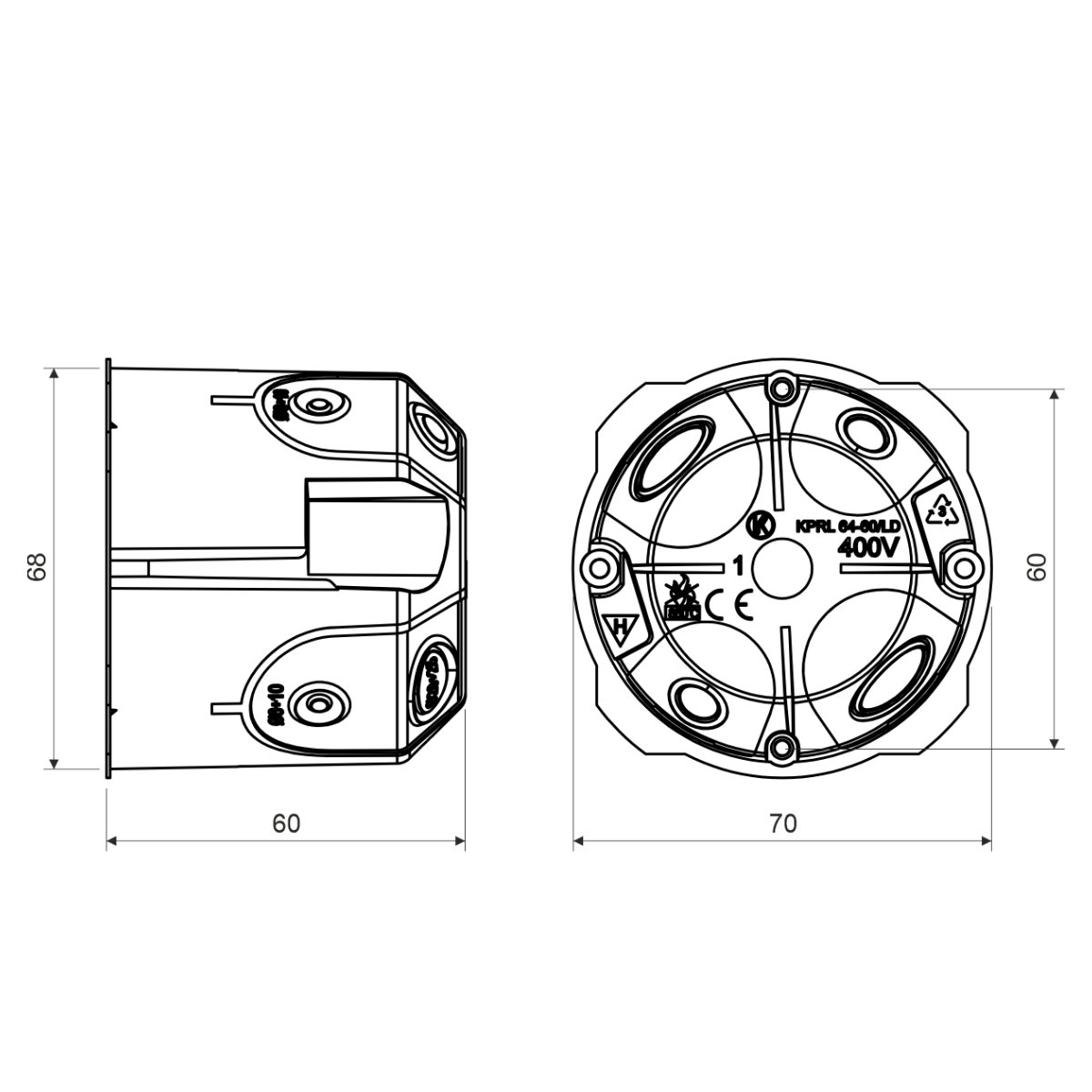

| Laius | 70 mm |
| Kõrgus | 68 mm |
| Sügavus | 60 mm |
| Puuritud augu läbimõõt | 68 mm |
| Tootmissoovitused Kõigi toodete puhul, mis on paigaldatavad õõnesseina, soovitame kasutada meie tarnitud freesimisseadmeid | |
| Alusmaterjali tulekaitseklass | A1 - F |
| Kaitsetüübid | IP 30 |
| Standardid | ČSN EN 60 670-1 |
| Pakendi kirjeldus harukarp on varustatud kruvidega kinnitamiseks kipsplaadile ja seadmekruvidega, pakendatud lahtiselt kartongkasti | |

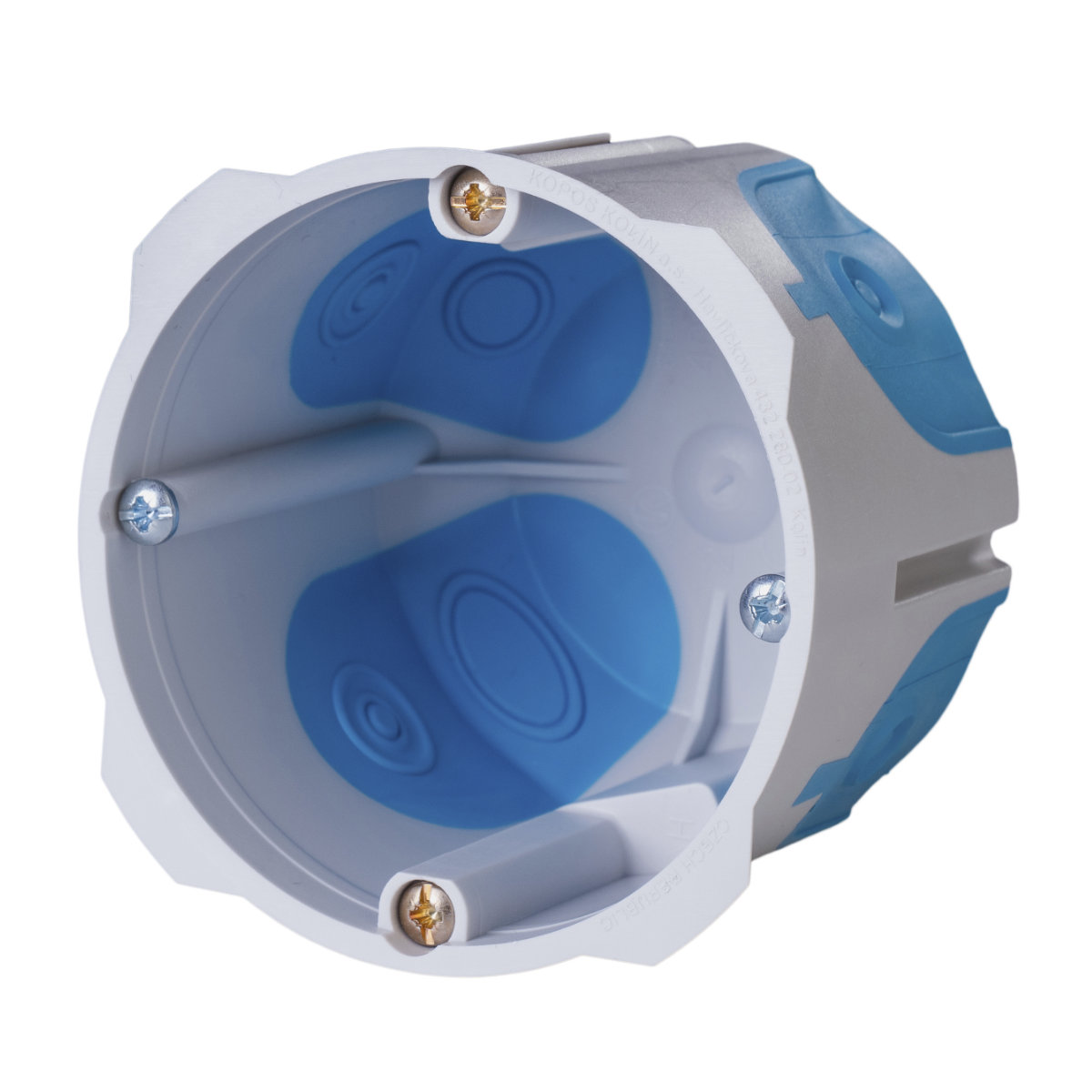

Halogen-free design of the two-injection box for hollow walls for use in environments with increased need for protection of persons and property. Inlet openings made of flexible material. Cable installation is done by pulling out the pre-moulded inlet on the flexible membranes and inserting the cable or pipe into the hole. Installation of the box in the opening is done by tightening the mounting screws. The airtightness of the penetration is ensured even when the cable or tube is inserted. Suitable for low-energy or passive houses. The box meets the requirements for installation in soundproof walls with an attenuation of up to 69 dB. Mounting and instrument screws are double-tapped threaded for quick installation, box includes plastic feet. No need to countersink the edge of the plasterboard during installation. IP30 protection is met by a box fitted with a suitable lid or instrument with a protection rating greater than or equal to IP30.
