illustrative picture
Andmeleht
EAN kood8595568934192
Tollikood83024190
Kaal0,47 kg/pcs
PinnaviimistlusRoostevaba teras AISI 304
StandardidČSN EN 61537
Maksimaalne koormus130 kg
Kaabliteede laiuse jaoks300 mm

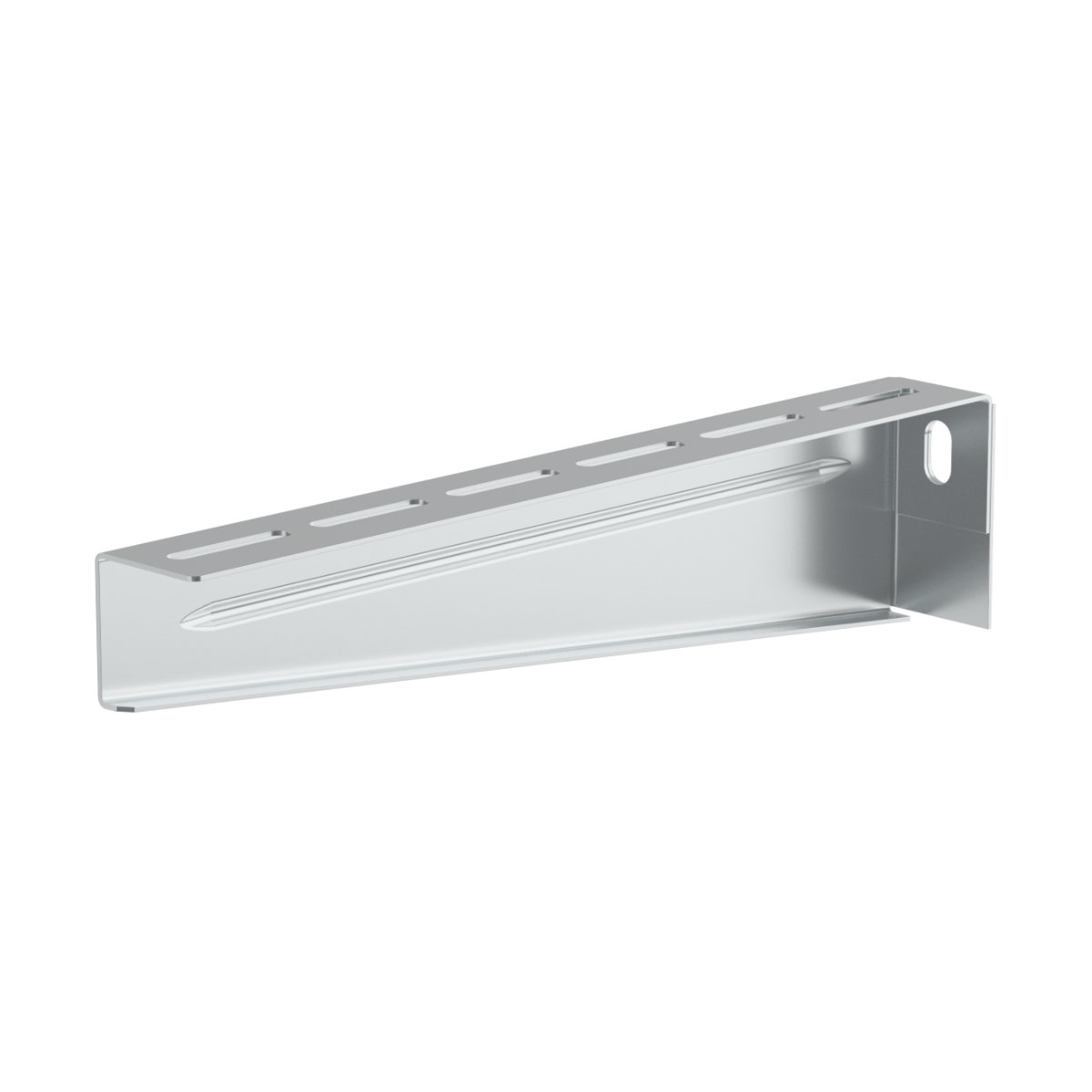

The bracket is used as an element to create a supporting structure for a cable tray. It is designated for installation on the wall or mounting profile. Attached to the wall using 2 pcs Ø 8 mm anchors. NIXSM 6X10 bolts are used to attach the cable tray to the bracket. To protect the cables, the bolt head is inside the cable tray.
