EAN kood8595568932358
Kaal0,06 kg/pcs
Värvmust + hall
Halogeenivaba materjaljah
Juhtiv materjaljah
Isekustuv30 s
Nimipinge<= 400 V
Nimivool<= 16 A
Temperatuurikindlus-5 - 60 °C
Põlemistest850 °C
horizontally max. 3 pieces of boxes next to each other, vertically max. 2 pieces next to each other

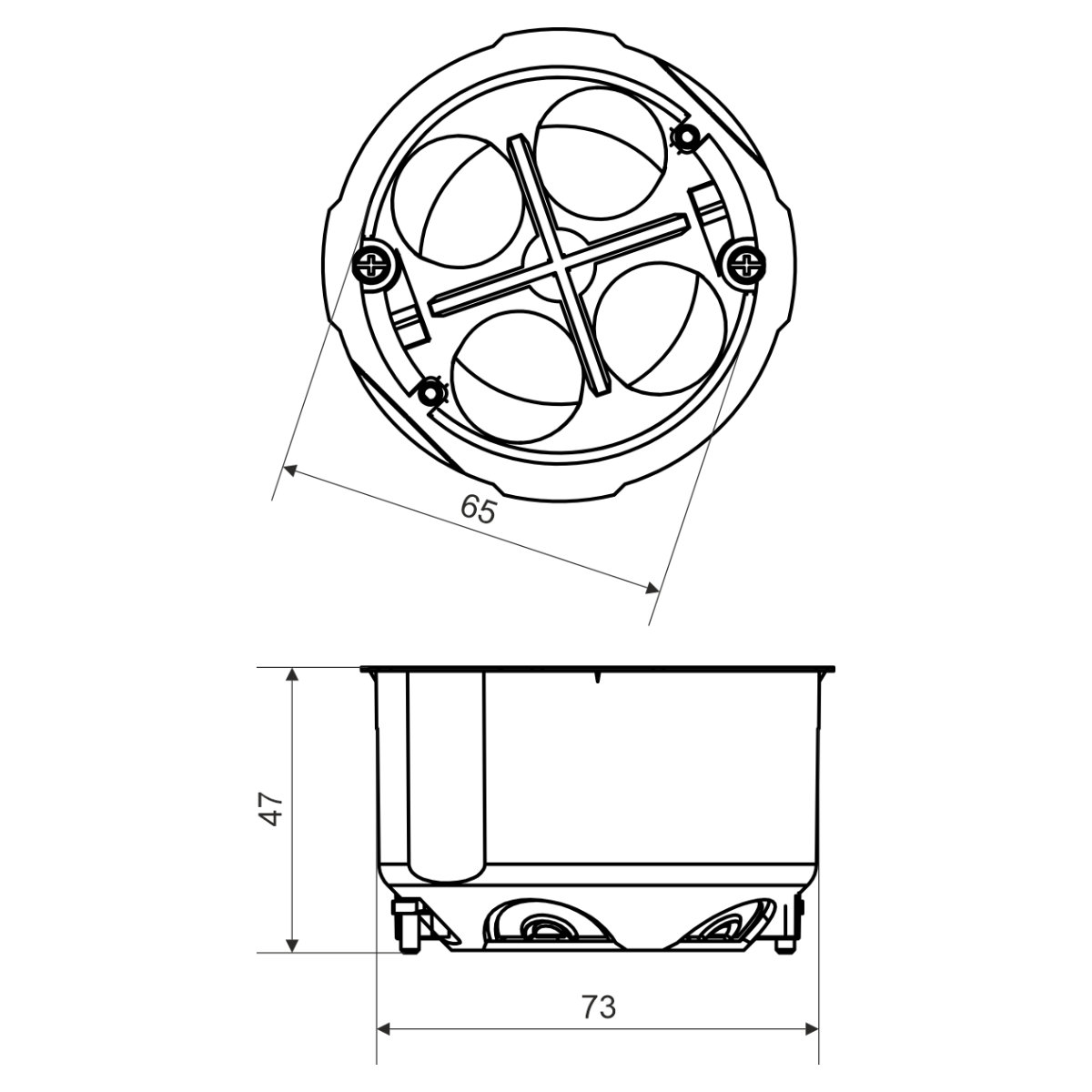

Laius73 mm
Kõrgus65 mm
Sügavus47 mm
Puuritud augu läbimõõt73 mm
Kõigi toodete puhul, mis on paigaldatavd õõnesseina, soovitame kasutada meie tarnitud freesimisseadmeid.
Alusmaterjali tulekaitseklassA1 - F
Võimalus ühendada 2 harukarpi järjestikkujah
KaitsetüübidIP 30
ČSN EN 60 670-1, ČSN EN 1363-1:2013, ČSN 73 08 10
Tulekindluse standardidEI 15 - EI 120
Pakendi kirjeldus
the box is fitted with screws for fixing onto plasterboard and with instrument screws, pack loosely in a box

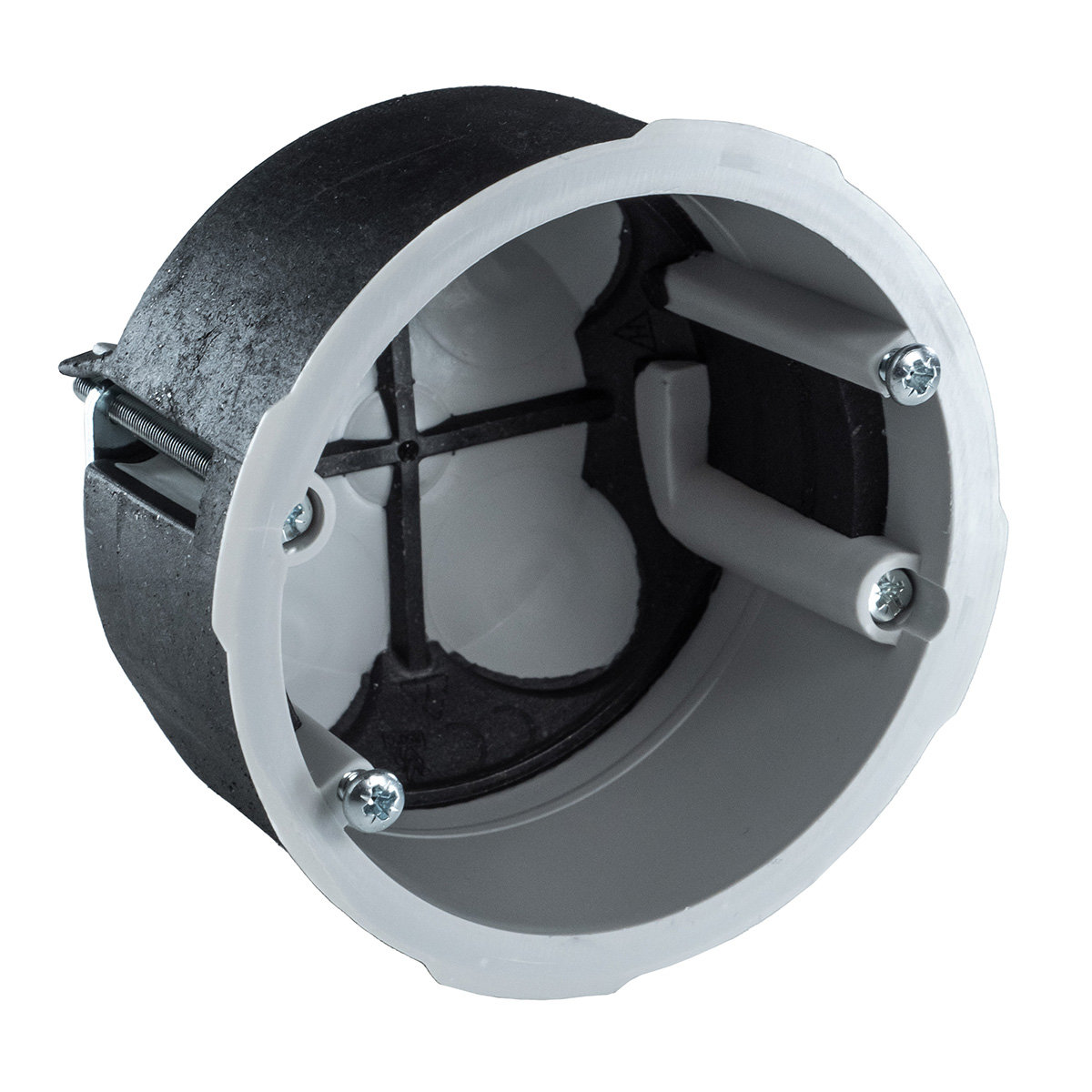

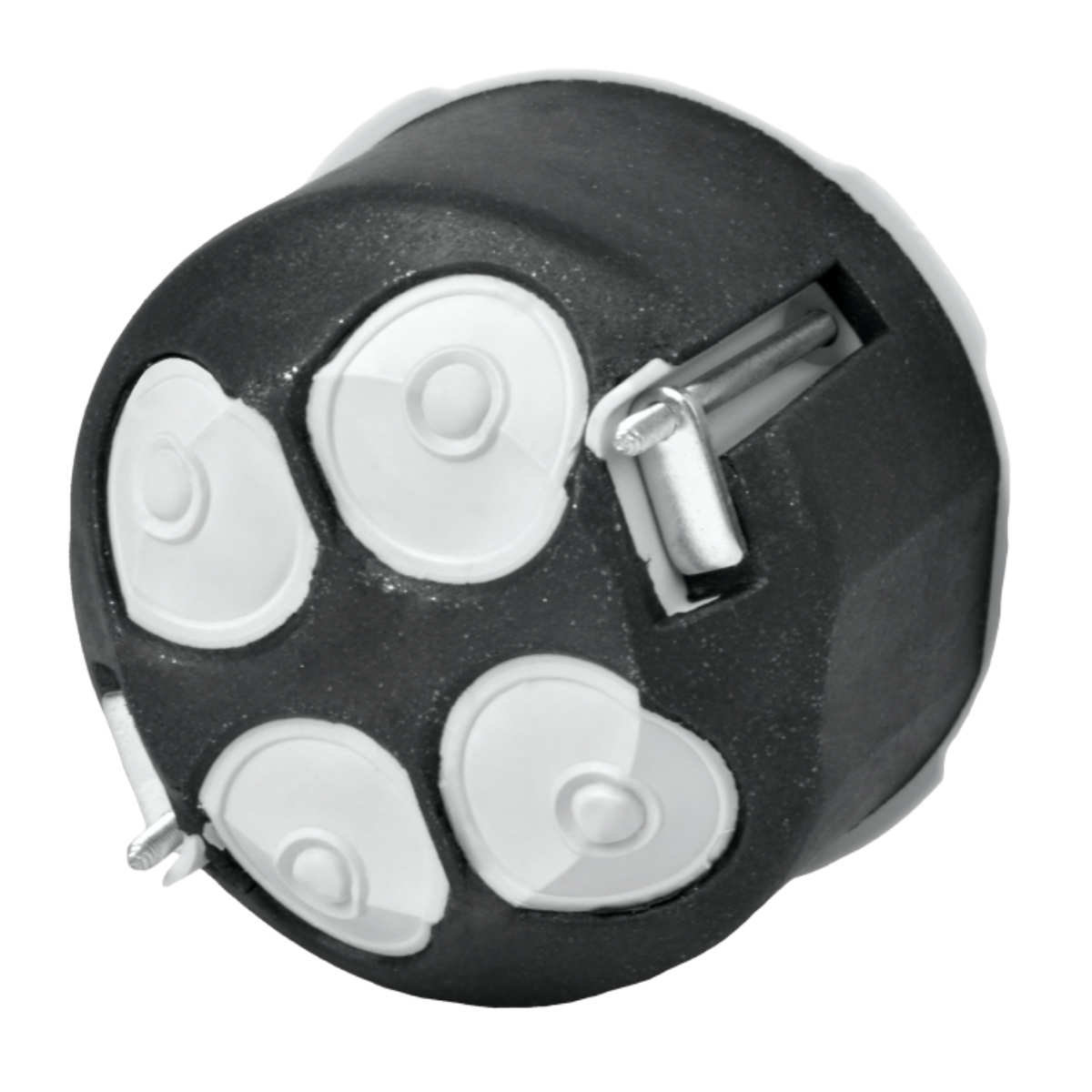

Wiring device box for fire partitions. Suitable for installation in plasterboard and aerated concrete structures. Designed for distribution with voltage up to 400 V. Inlet openings made of flexible material. Ensured airtightness of the passage even when the cable or pipe is inserted. Foaming material on the outside and inside of the box. In the event of a fire, this material quickly changes its volume (swells) and thus seals the installation opening of the box and prevents the passage of fire through the partition. The IP30 protection a box fitted with an appropriate lid or a device with a higher or equal IP30 protection. The diameter of the installation hole is 73 mm. Mounting screws and metal feets are provided with a three-way thread for quick installation. Suitable for buildings with increased personal and property protection in case of fire. The box is available in selected countries.

Note for system with maintained functionality in fire:
Fire integrity and insulation up to 120 minutes (EI 15 - EI 120). The fire protection material inside and outside the box.
The PO classification is dependent on the specific placement of the box in plasterboard or aerated concrete, detailed in the new catalog – Systems with maintained functionality in fire.
