EAN kood8595568932143
Kaal5,9290 kg/m
PinnaviimistlusEelnevalt tsingitud
Temperatuurikindlus-50 - 150 °C

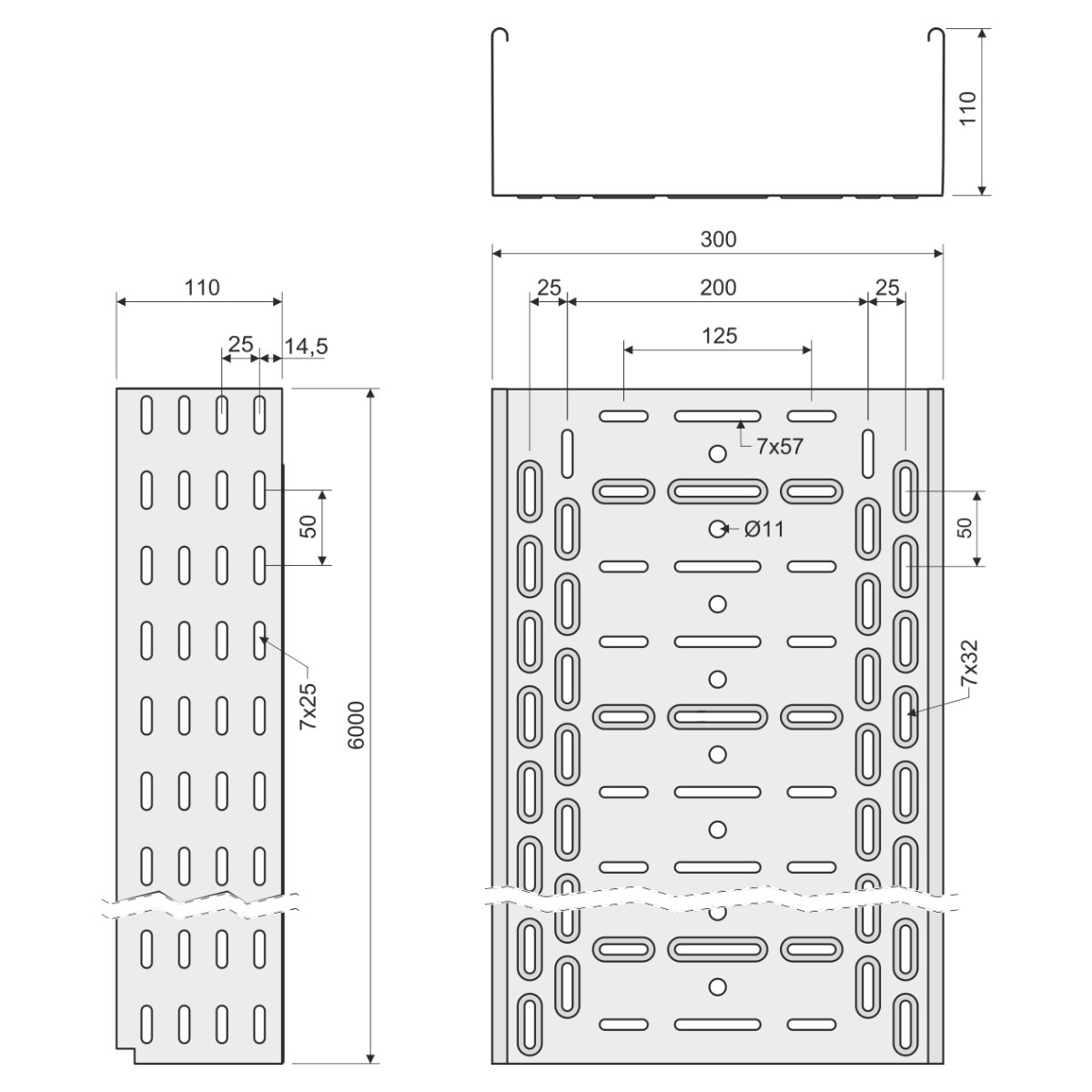

Laius300 mm
Kõrgus110 mm
Pikkus6000 mm
StandardidČSN EN 61537
Metallplaadi paksus1,5 mm
Kruvide arv ühendamiseks34

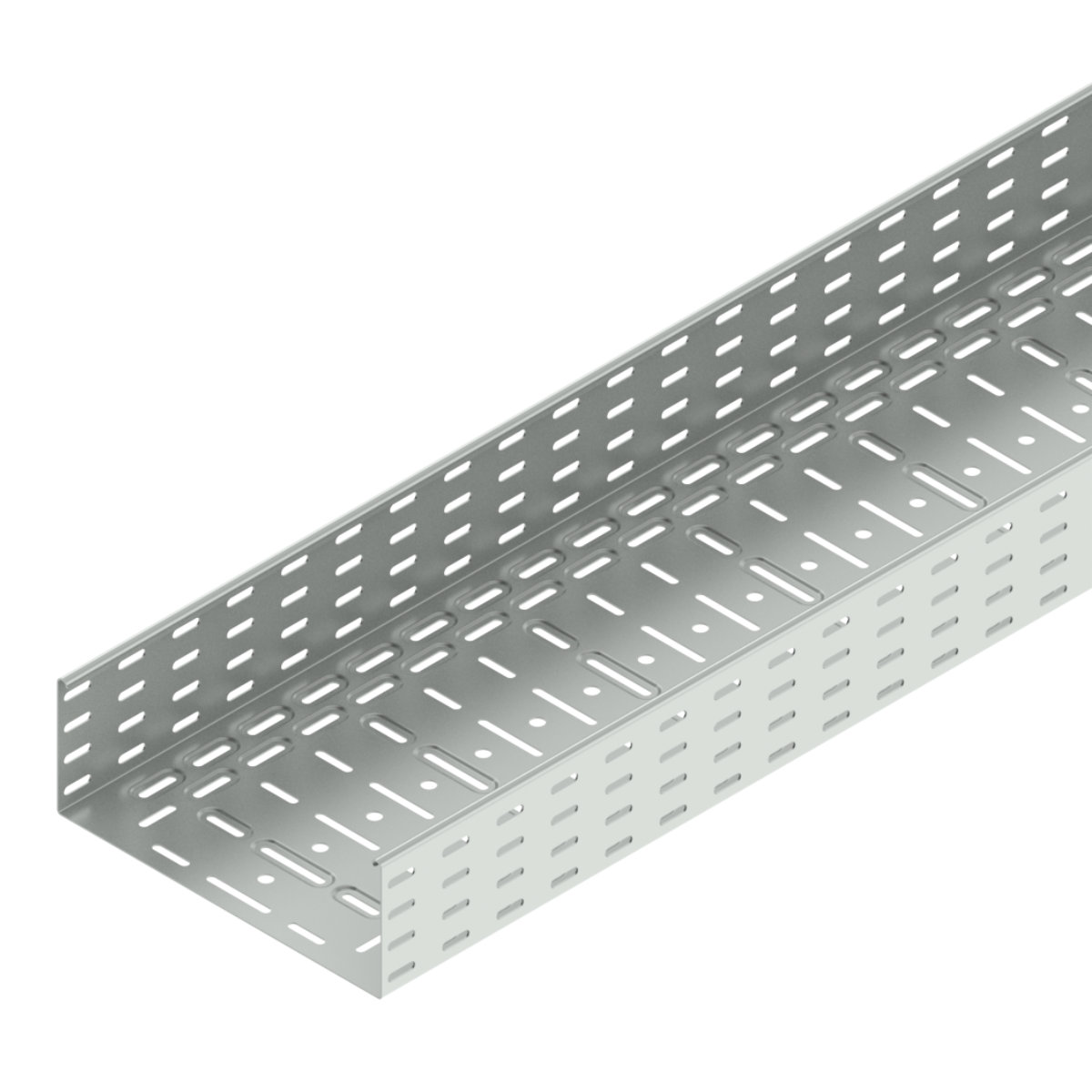

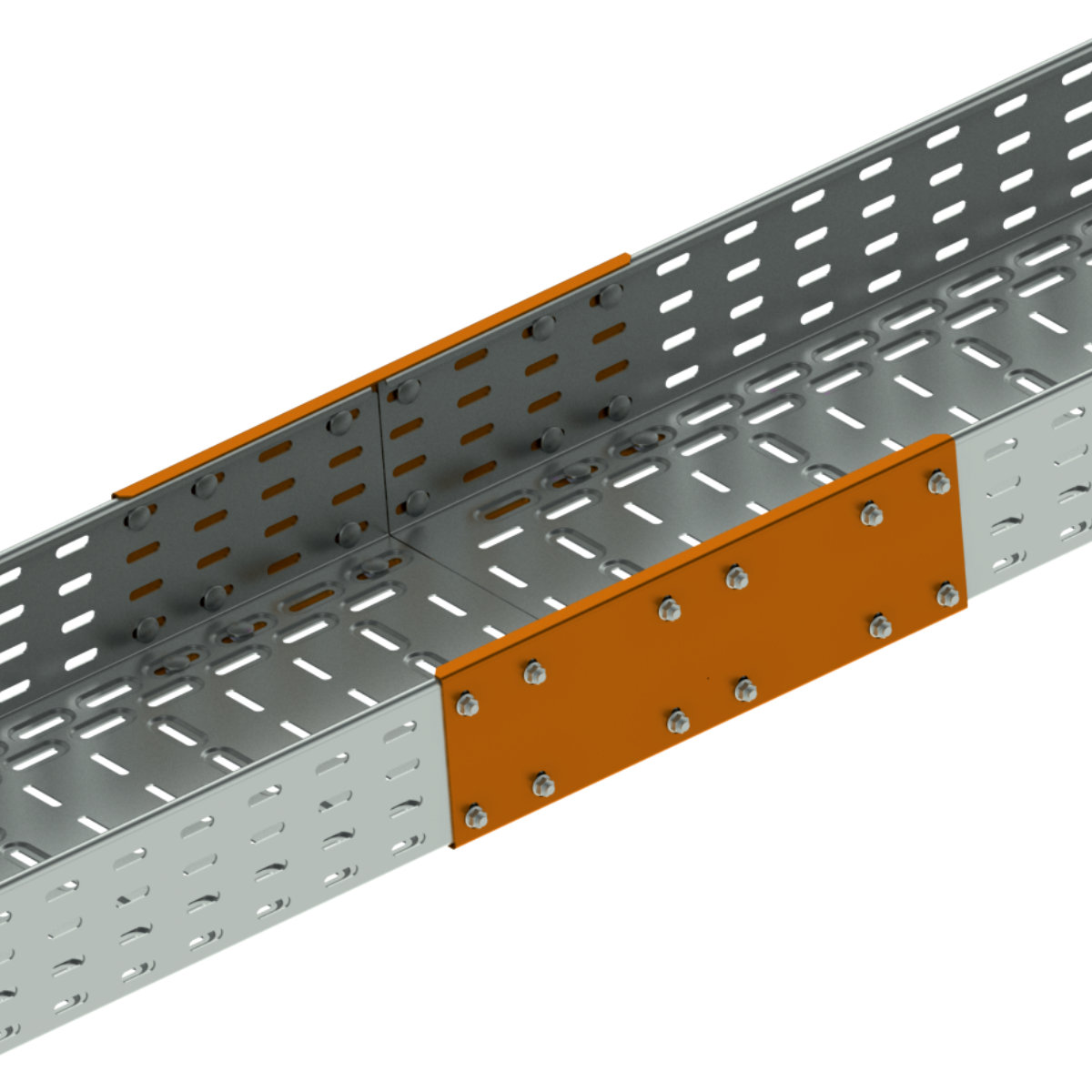

The standard length of the cable tray is 6 m. The trays are connected by 2 pcs of KDS jointing plate and 17 pcs of NSM 6X10 bolts. Jointing points can not be placed over the support. The cable tray is suitable for creating a cable route with a support spacing of up to 6 meters.
